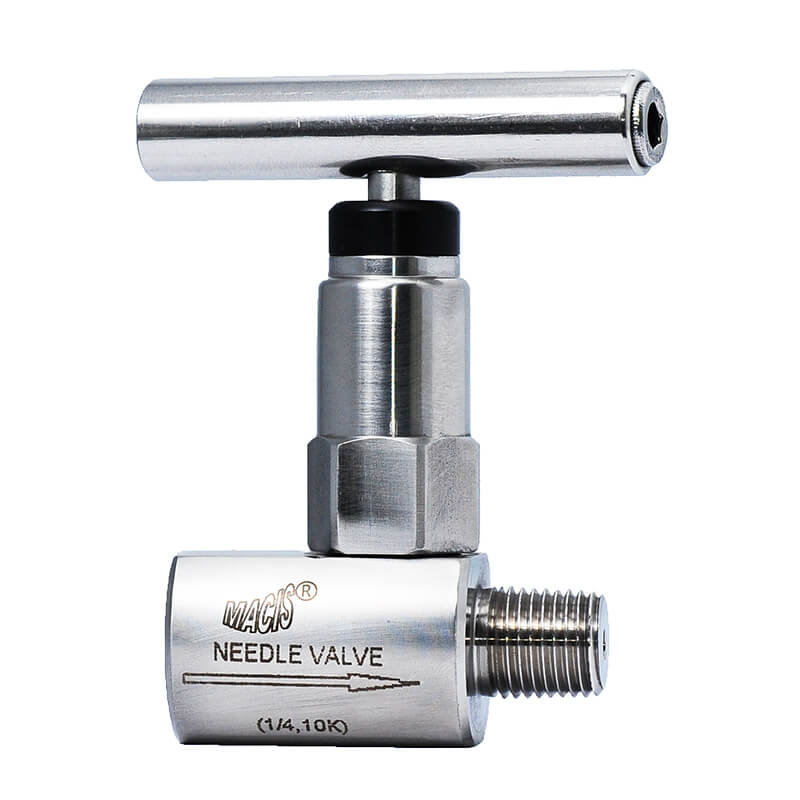

Features
- Control Application
- 2-Way, Manual operation and Straight pattern
Restriction Orifice
-
Specification
- Working Media
- Oil
- Port Connection Size
- IN Port:1/4″-18NPT F
OUT Port: 1/4″-18NPT M
- Exterior Shape
- Circular Ø28.0mm (1 7/64” )
- Max Working Pressure
- 10,000psi (689.4 bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult Factory
- Material (Valve Body)
- 316L
- Panel Hole Size
- Without
- Net Weight
- 300gm
- Seal Material
- Nitrile Rubber (NBR)
Other Seal Material are Available Upon Request
- Flow Rate
- Cv = 0.5
- Orifice Size (Standard)
- Ø3.5mm (9/64” )
- Options
- Body Material and end connections other option available upon request
- Locknut
- Without
- Stem Seal
- With
