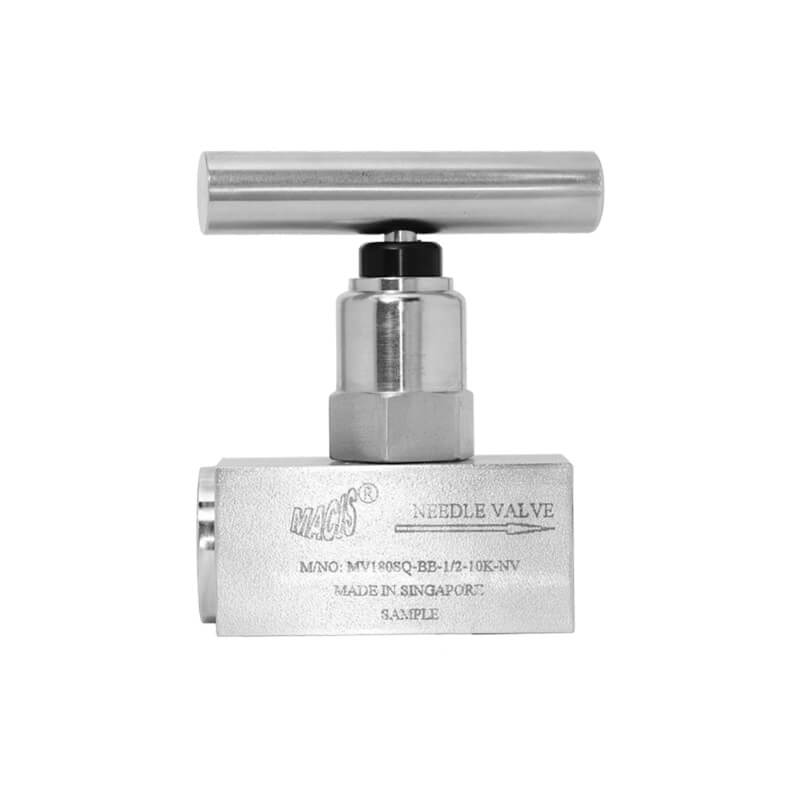

Features
- Control Application
- 2-Way, Manual operation and Straight pattern,
Restriction Orifice
-
Specification
- Working Media
- Air
- Port Connection Size
- IN Port:1/2″-14NPT F
OUT Port: 1/2″-14NPT F
- Exterior Shape
- SQ 31.75mm×31.75mm( 1 1/4″x1 1/4″)
- Max Working Pressure
- 10,000psi (689.4 bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult
Factory
- Material (Valve Body)
- 316 L
- Panel Hole Size
- Without
- Net Weight
- 700gm
- Seal Material
- Viton(FKM)
Other Seal Material are Available Upon Request
- Flow Rate
- Cv = 1.4
- Orifice Size (Standard)
- Ø6.5mm ( 1/4″)
- Options
- Body Material and end connections other option
available upon request
- Locknut
- Without
- Stem Seal
- With
- Screw Hold
- Without
