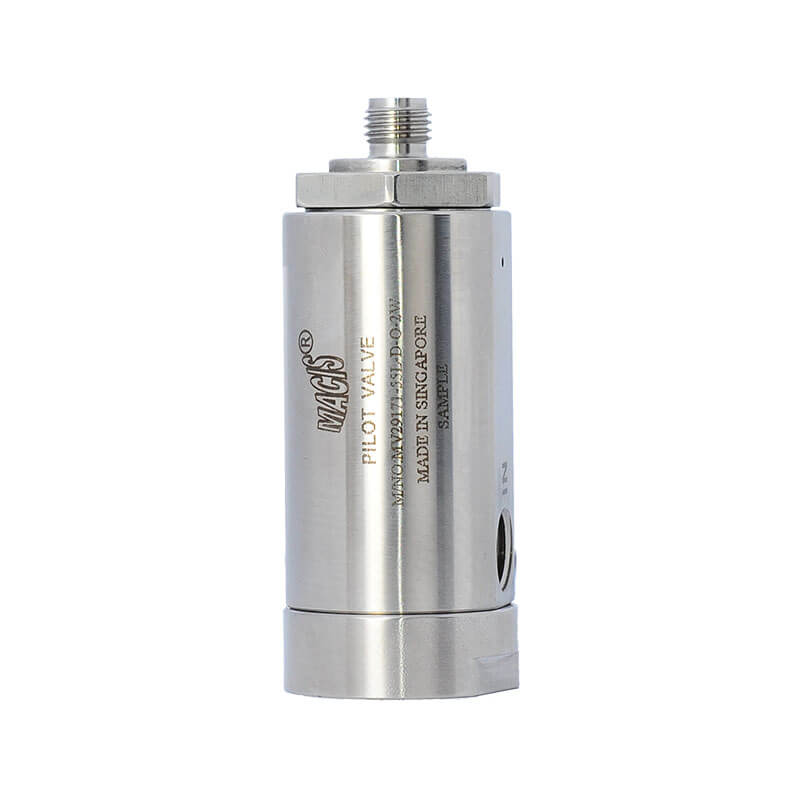

Features
- Control Application
- 2-Way Normally Open
Auto Operation Type
-
Specification
- Working Media
- Air
- Port Connection Size
- IN & OUT Ports : ¼”-18NPT F, Pilot Port : 7/16”-20UNF M
- Exterior Shape
- Circular Ø 38.1 mm (1 1/2 “)
- Pilot Pressure Range
- 25 – 120 PSI (1.8 – 8.2 bar)
- Max Working Pressure
- 200 PSI (13.7 bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult Factory
- Material (Valve Body)
- 316 L
- Net Weight
- 600 gm
- Seal Material
- Viton(FKM)
Other Seal Material are Available Upon Request
- Flow Rate
- Cv = 1.6
