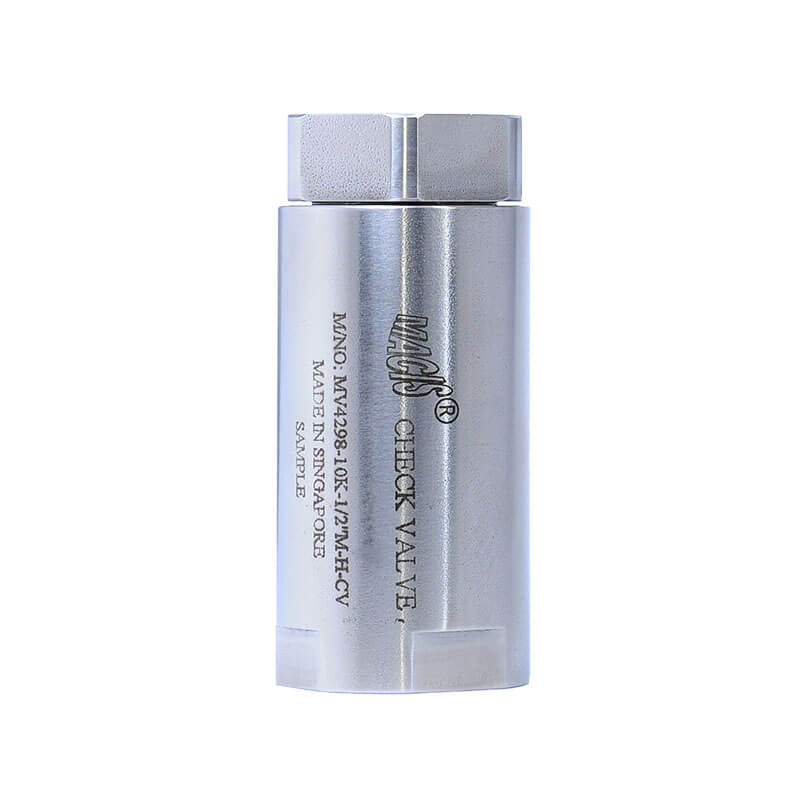

Features
- Control Application
- Directional Flow (In the open position to allow forward flow and closed
position to block reverse flow)
-
Specification
- Working Media
- Oil
- Port Connection Size
- IN & OUT Ports 1/2”-14NPT F
- Exterior Shape
- Circular Ø38.1mm (1 1/2″)
- Max Working Pressure
- 15,000psi (1,034.2bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult Factory
- Material (Valve Body)
- 316 L
- Net Weight
- 610gm
- Seal Material
- Nitrile Rubber(NBR)
Other Seal Material are Available upon request.
- Flow Rate
- Cv = 5.8
- Orifice Size (Standard)
- Ø9.5mm ( 3/8″)
- Cracking Pressure
- 1 to 3 PSI (0.068 to 0.206 bar)
Other Cracking Pressure are Available Upon Request
