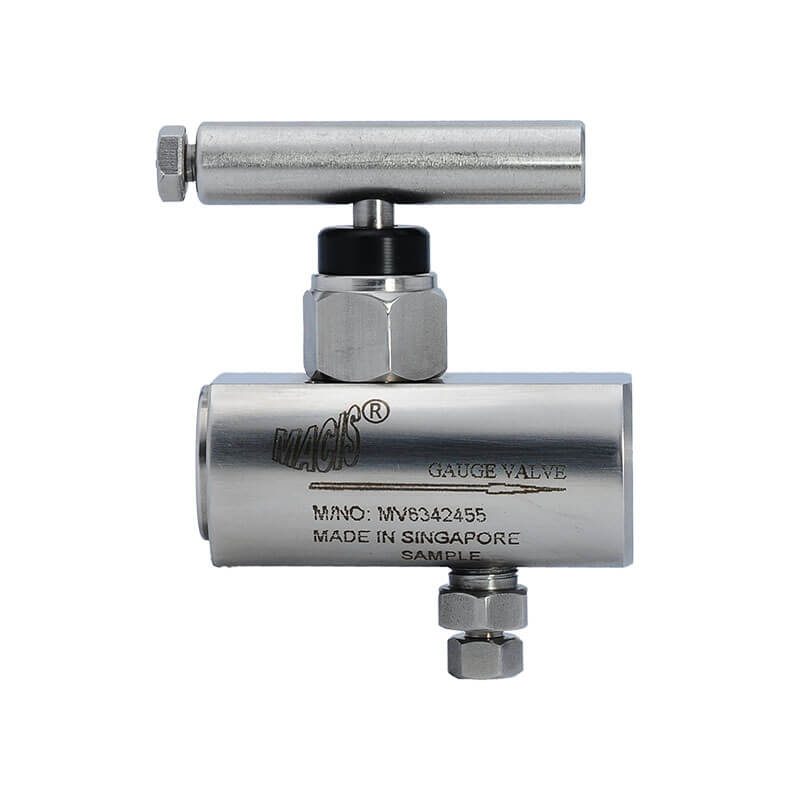

Features
- Control Application
- 2-Way, manual operation Type
Provides isolation and venting for Static pressure gauge and instrument
Installation.
-
Specification
- Working Media
- Air
- Port Connection Size
- IN & OUT Ports 1/4”-18NPT(Taper) “F”
- Exterior Shape
- Circular Ø31.0mm( 1 7/32″)
- Max Working Pressure
- 10,000psi(689.4 bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult Factory
- Material (Valve Body)
- 316 L
- Net Weight
- 530gm
- Seal Material
- Viton(FKM)
Other Seal Material are Available Upon Request
- Flow Rate
- Cv = 0.15
- Orifice Size (Standard)
- Ø2.0mm( 5/64″)
- Options
- Body Material and end connections other option available upon request
