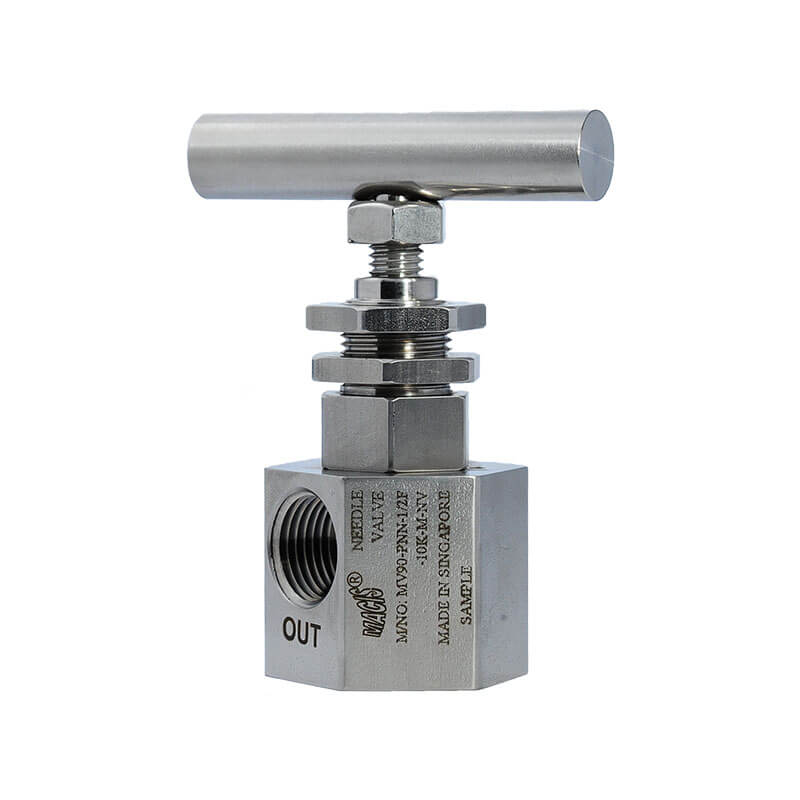

Features
- Control Application
- 2-Way,
Manual operation and Angle pattern,
Restriction Orifice
-
Specification
- Working Media
- Air
- Port Connection Size
- IN Port: 1/2″-14NPT F
OUT Port: 1/2″-14NPT F
- Exterior Shape
- Hexagon A/F41.2mm( 1 5/8″)
- Max Working Pressure
- 10,000psi (689.4bar)
- Temperature Range
- – 30°C to 120°C
Other Temperature Ranges available. Consult
Factory
- Material (Valve Body)
- 316 L
- Panel Hole Size
- Ø20.5mm( 51/64″)
- Net Weight
- 600 gm
- Seal Material
- Viton(FKM)
Other Seal Material are Available Upon Request
- Flow Rate
- Cv = 1.3
- Locknut
- With
- Stem Seal
- Without
